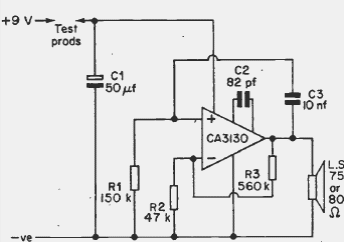

This circuit with the operational amplifier CA3130 was found in a documentation from 1977. The circuit does not need a symmetric source. It generates an audio tone when it encounters continuity in a component or circuit.
Continuity Tester (CB21993E)
- Details
- Written by: Newton C. Braga
