Up to 3 minutes timer (CB21429E)

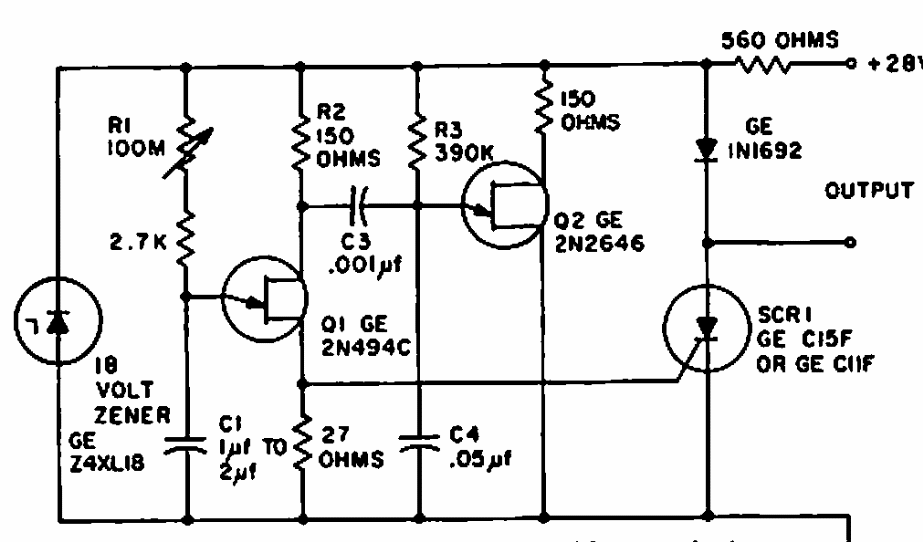

We found this circuit in a 1967 General Electric SCR manual. The time is set to R1 and depends on C1 which must be a low-leak capacitor.
