Oscillator for the medium wave range (CB21140E)

Details
Written by: Newton C. Braga

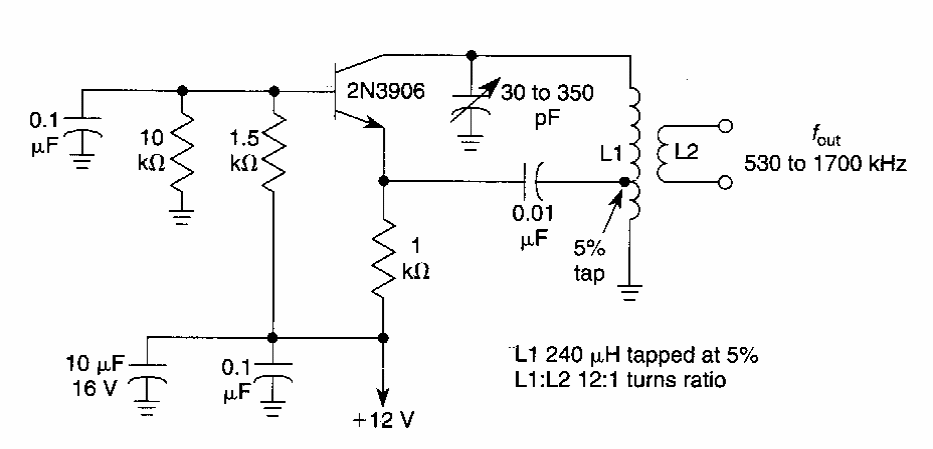

This ground-based circuit was found in 1990s American documentation. The transistor can be any general-purpose equivalent.




| Clique na imagem para ampliar |
