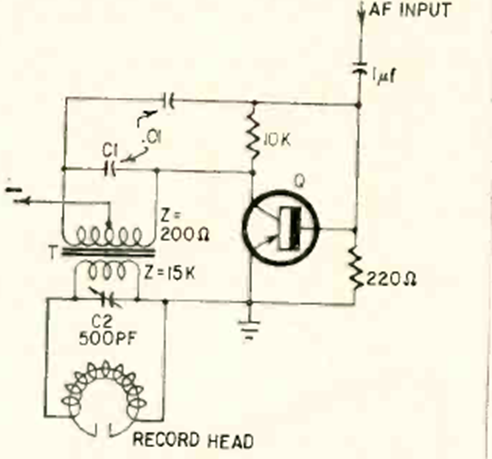

This simple circuit is from documentation from 1964. It can be created with current transistors. It matches the low impedance of the head with the signal source circuit. A little transformer like it was used.
Oscillator for recording head (CB23632E)
- Details
- Written by: Newton C. Braga
