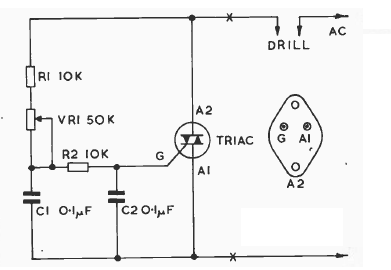

This is a conventional circuit with triac but no diac which would be nice in place of R2. In the original English, perhaps a triac with the diac embedded in it, that is, a quadrac, was indicated.
Triac power control (CB22119E)
- Details
- Written by: Newton C. Braga
