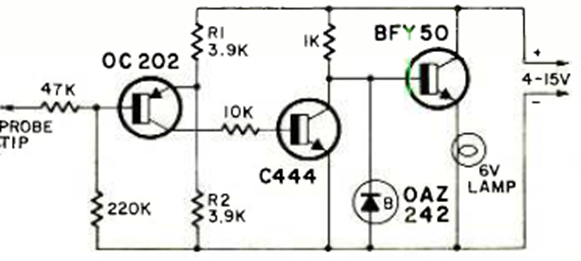

This circuit is from a Radio Electronics from February 1970. The circuit has a light bulb as an indicator but can be made with LEDs and modern transistors. With 5 V the circuit is TTL compatible.
Logic Level Indicator (CB23994E)
- Details
- Written by: Newton C. Braga
