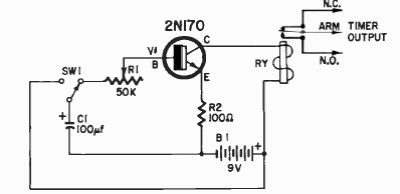

This timer for short intervals was found in a documentation from 1966. The transistor is made of germanium and the relay is sensitive to voltage according to the power supply. The time depends on C1.
Single timer (CB22497E)
- Details
- Written by: Newton C. Braga
