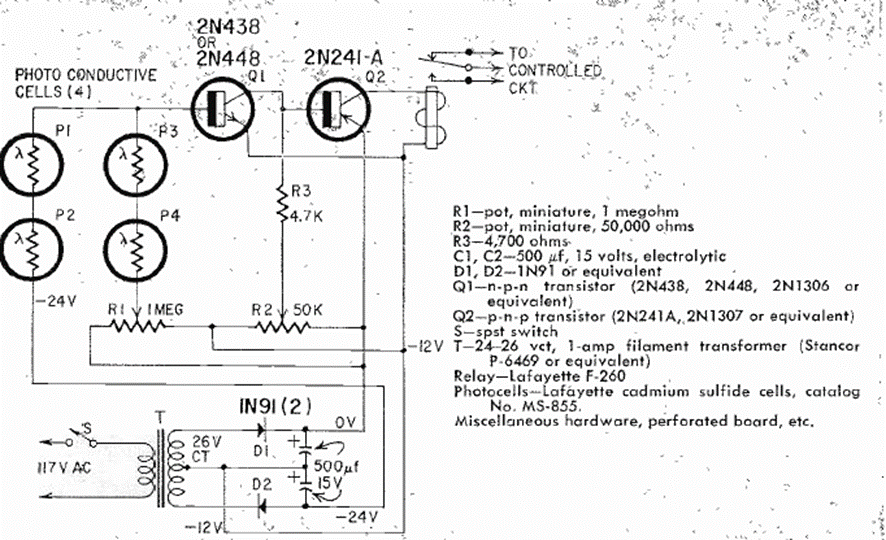

This circuit had its assembly described in Radio Electronics from July 1964. The circuit uses LDRs adjusted to have a reference and thus serve as a contrast sensor. The circuit activates a relay and is powered by a 12 V source.
| Clique na imagem para ampliar |
