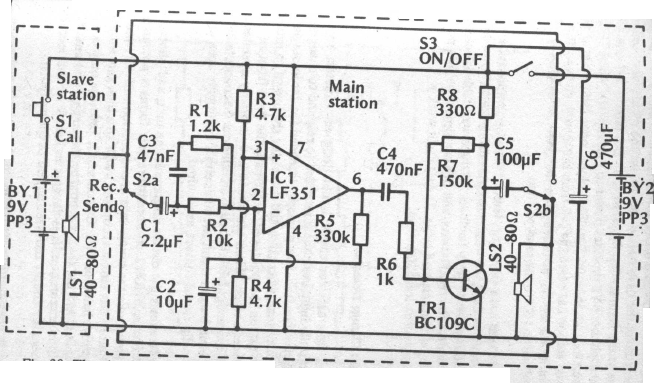

This wired intercom circuit was found in an English publication from the 80's. The integrated circuit can be replaced by an equivalent, just like the transistor which is a general-purpose type.
| Clique na imagem para ampliar |
Intercom (CB22181E)
- Details
- Written by: Newton C. Braga
