CB Modulator (CB23784E)

Details
Written by: Newton C. Braga

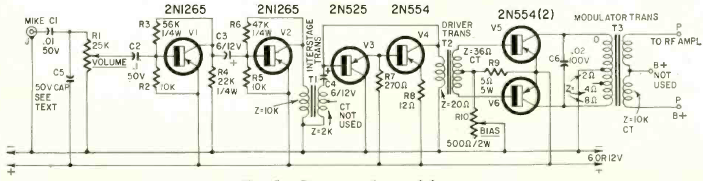

This transmitter modulator amplifier for the 11-meter band (CB) was published in Radio Electronics magazine in November 1961. The circuit is for use in a car transmitter.
