Q Multiplier (CB22176E)
- Details
- Written by: Newton C. Braga

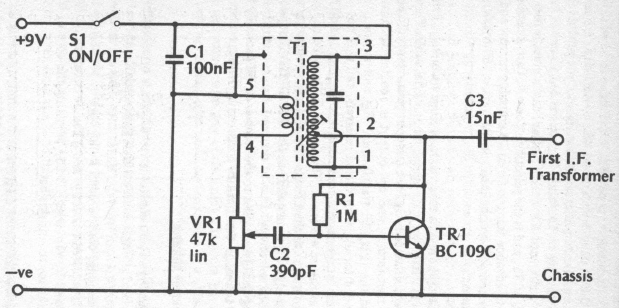

We found this circuit in a documentation from 1989. It is intended for receivers that have an IF of 455 kHz. Transformer T1 is a common transistor radio IF.
