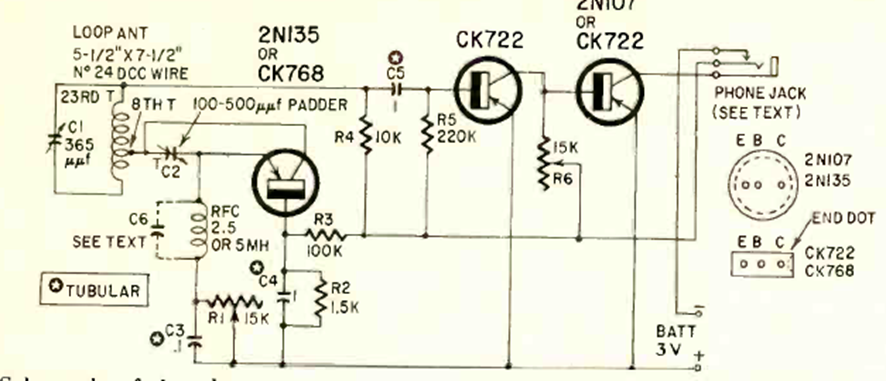

This sensitive receiver for the medium wave range was found in Radio Electronics magazine from December 1960. The circuit has a headphone output and is powered by just 3 V.
| Clique na imagem para ampliar |
Ultrasensitive receiver CK722 (CB23715E)
- Details
- Written by: Newton C. Braga
