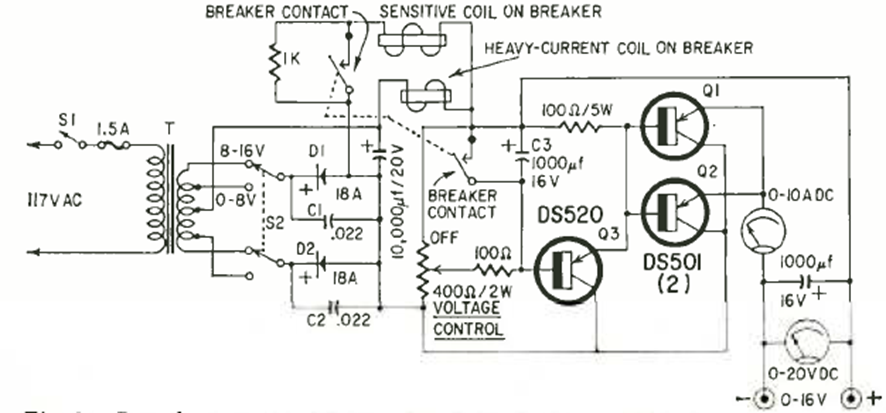

This 3-transistor circuit is from a 1963 publication. The transistors are from the time, but the circuit can be modified to use current transistors. The maximum current is between 5 and 8 A in two ranges selected by switches.
