Test circuit with bridge (CB22530E)

Details
Written by: Newton C. Braga

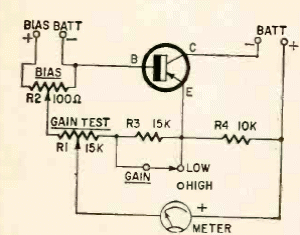

This bridge-biased transistor test circuit measures gain in the range 0 to 300. Circuit is from Radio Electronics June 1952.
