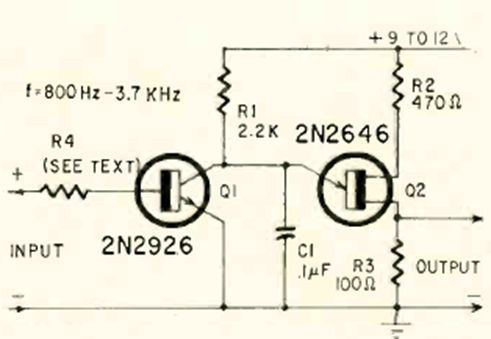

This circuit converts a range of input voltages at frequencies from 800 Hz to 3.7 kHz. This is a voltage-controlled oscillator found in the June 1968 Radio Electronics magazine. The component values can be changed.
Unijunction Analog to digital Converter (CB23909E)
- Details
- Written by: Newton C. Braga
