Old amplifier (CB23684E)

Details
Written by: Newton C. Braga

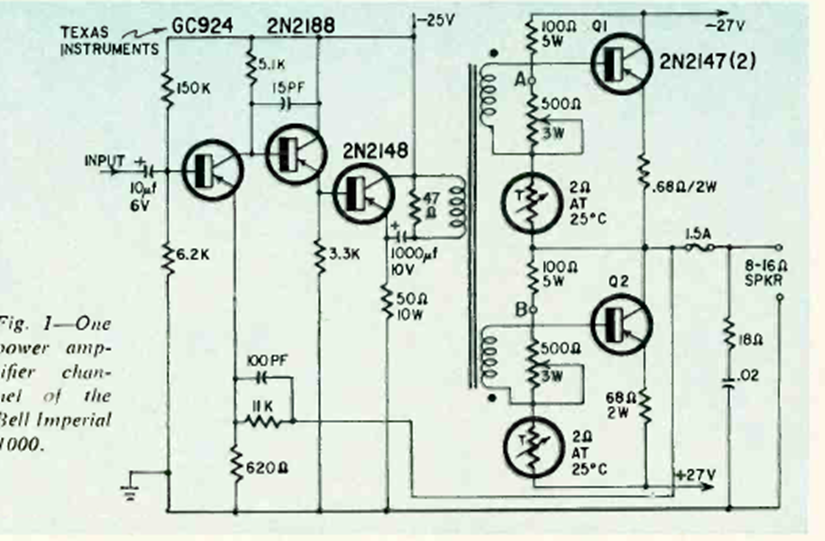

This is a 1960s amplifier setup found in a period publication. The circuit uses a special driver transformer that inverts the phases of the signal to excite the output transistors.




| Clique na imagem para ampliar |
