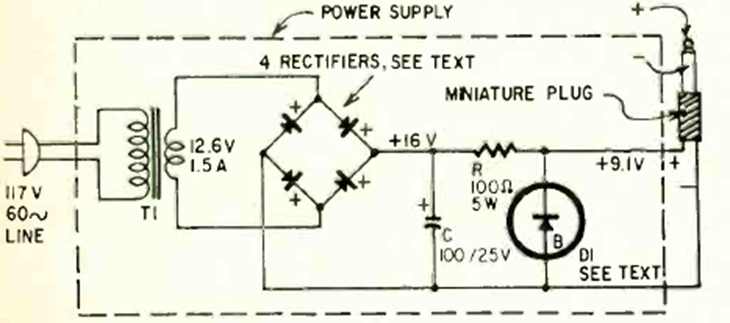

This circuit is regulated by zener and provides a voltage of 9 V. The circuit is from a Radio Electronics from November 1965. The current depends on the transformer and on the dissipation of the zener together with the value of the resistor R.
