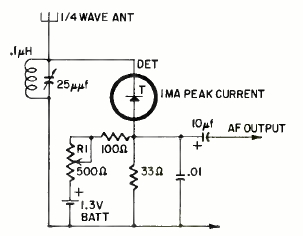

In the figure we have a simple FM tuner using a tunnel diode. Can be adapted to other frequency ranges. The circuit is from a Radio Electronics from November 1962.
Tunnel diode FM tuner (CB23852E)
- Details
- Written by: Newton C. Braga
In the figure we have a simple FM tuner using a tunnel diode. Can be adapted to other frequency ranges. The circuit is from a Radio Electronics from November 1962.
