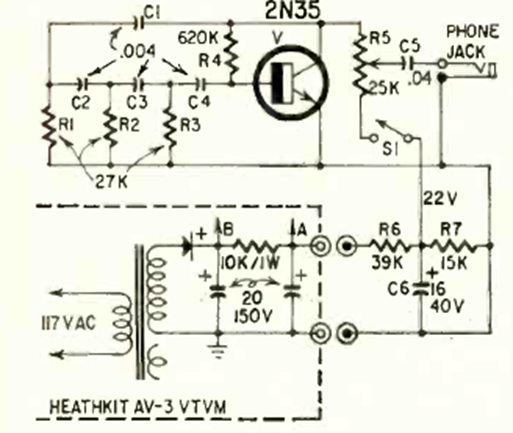

This bench signal injector, powered by the power grid, was published in Radio Electronics magazine in April 1963. The circuit uses only 1 transistor generating a low frequency sinusoidal signal.
Signal injector (CIR23872E)
- Details
- Written by: Newton C. Braga
