Logic probe (CB22142E)
- Details
- Written by: Newton C. Braga

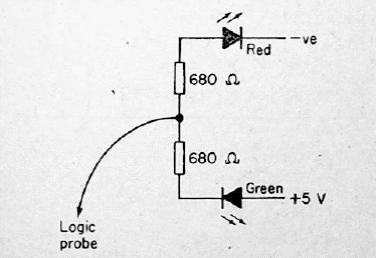

This simple circuit indicates the logic level of a TTL output. The resistors can be 1k and the circuit will also operate with CMOS logic.
