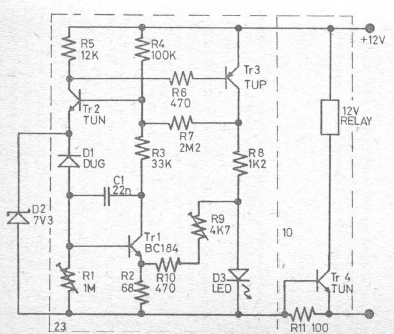

This circuit was found in old English documentation. Transistors are common and the sensor is a 1M NTC. The activation is done through a relay.
Thermostat (CB22131E)
- Details
- Written by: Newton C. Braga
This circuit was found in old English documentation. Transistors are common and the sensor is a 1M NTC. The activation is done through a relay.
