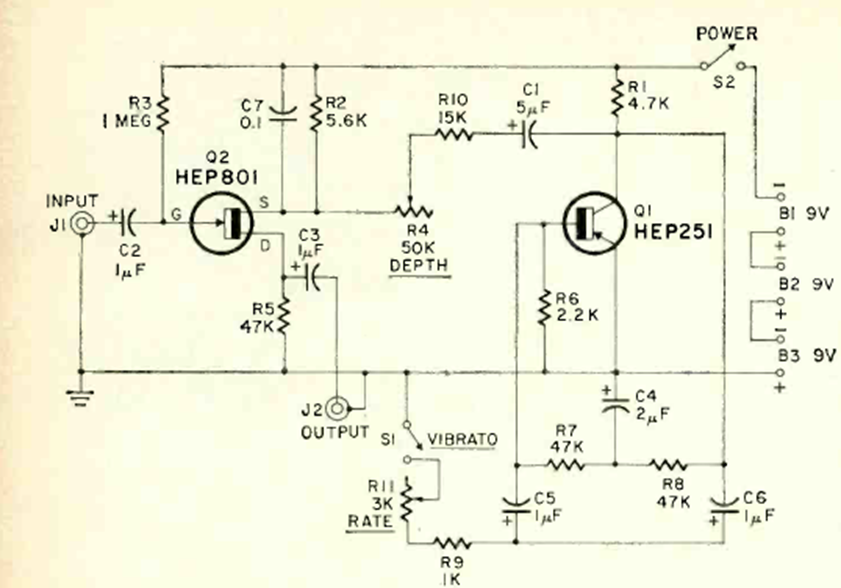

This sound effect circuit was obtained from an article in the April 1969 issue of Radio Electronics magazine. The two transistors are general-purpose types from the time that accept modern-day equivalents. Power is provided by three 9 V batteries.
