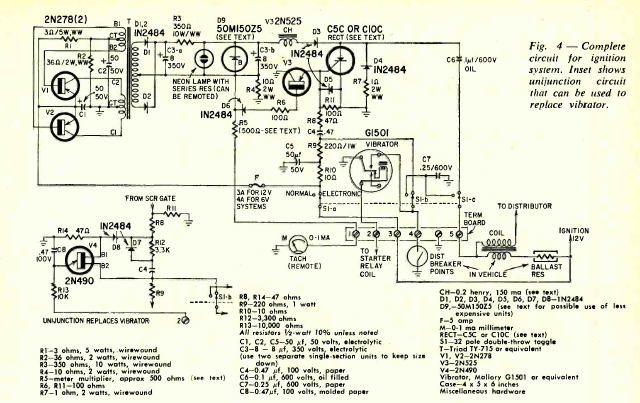

This is perhaps one of the first capacitive discharge ignition circuits published in a magazine. It appeared on Radio Electroncs in July 1962. The components are from the time and the circuit is very well designed.
Capacitive discharge ignition (CB23828E)
- Details
- Written by: Newton C. Braga
