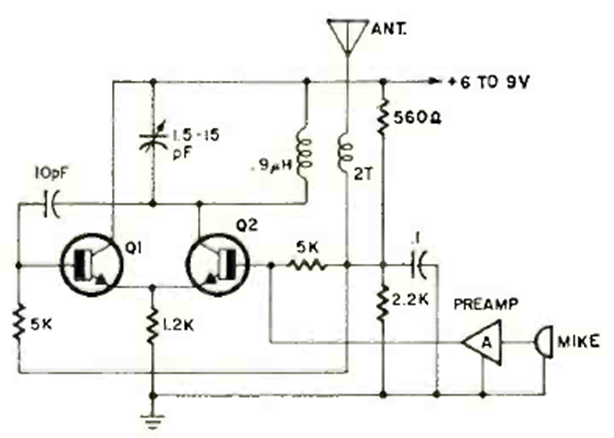

This interesting emitter-coupled circuit was found in the May 1970 issue of Radio Electronics magazine. The circuit has a range of a few tens of meters. The microphone preamplifier is not given, but an electret can be used.
CB24029E Two-Transistor FM Transmitter ()
- Details
- Written by: Newton C. Braga
