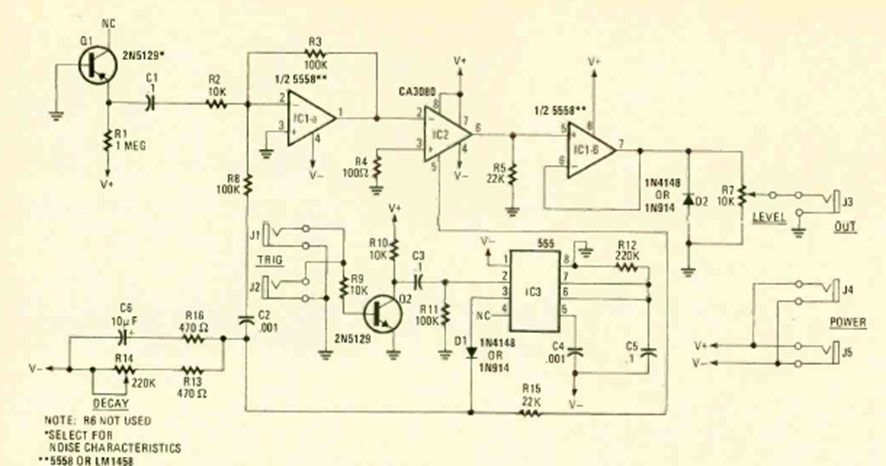

This circuit that simulates the sound of a drum is part of an article published in the Radio Electronics magazine in December 1979. The circuit has decay adjustment, and the power supply must be provided by a symmetrical source.
