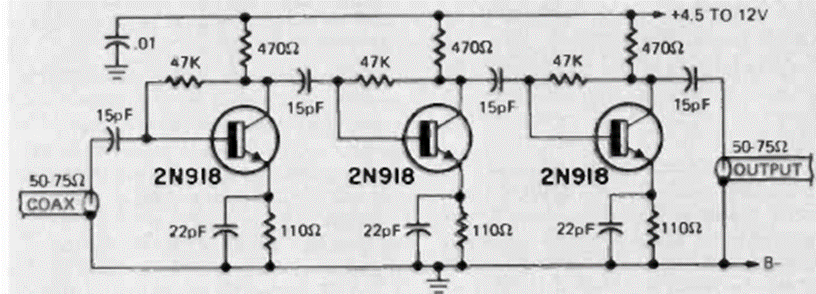

This untuned (aperiodic) amplifier circuit was found in the August 1974 Radio Electronics magazine. The transistors are period, and the board layout is critical.
| Clique na imagem para ampliar |
VHF Booster (CB24316E)
- Details
- Written by: Newton C. Braga
