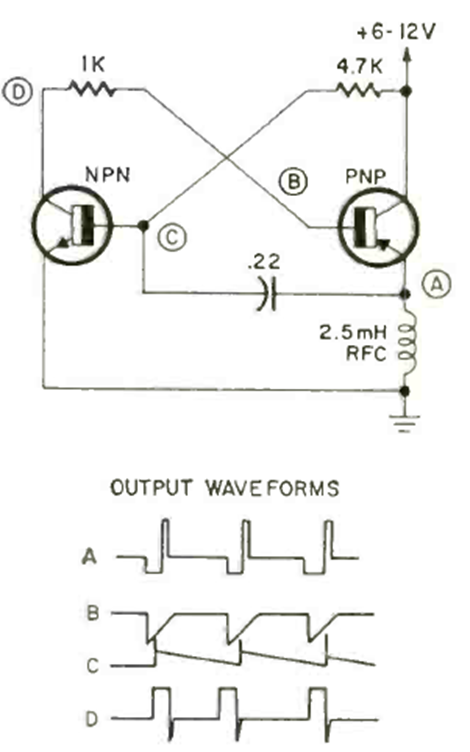

This circuit was found in the September 1971 issue of Radio Electronics magazine. The capacitor and inductor determine the frequency. The waveforms are given next to the diagram. For the components indicated the frequency is around 1 kHz.
Differential Oscillator (CB24160E)
- Details
- Written by: Newton C. Braga
