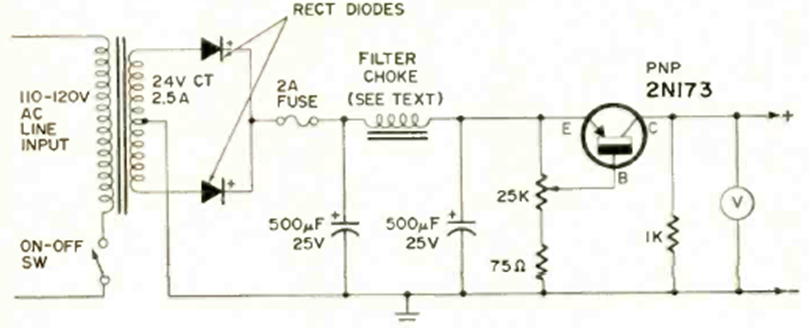

This power supply was found in the December 1970 issue of Radio Electronics magazine. The transistor may be a TIP42 mounted on a heat sink. The output voltage is adjusted using a 25 kΩ potentiometer.
| Clique na imagem para ampliar |
2.5 A Regulated Power Supply (CB24099E)
