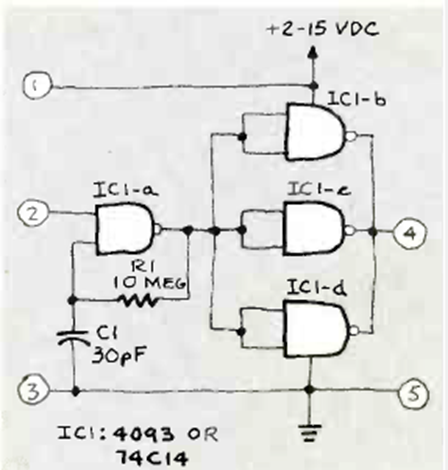

This circuit shows how to use the remaining gates of a 4093 or 74C14 as amplifiers. The circuit has the supply voltage according to the technology used. The frequency depends on R1 and C1.
Buffered TTL or CMOS oscillator (CB24725E)
- Details
- Written by: Newton C. Braga
