15 Hz to 30 kHz Oscillator (CB24024E)

Details
Written by: Newton C. Braga

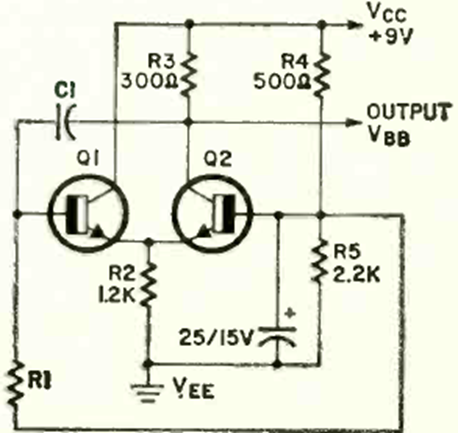

The RC network of this circuit determines the operating frequency. The emitter-coupled circuit was found in the May 1970 issue of Radio Electronics magazine.
