Triac Power Switch (CB24041E)

Details
Written by: Newton C. Braga

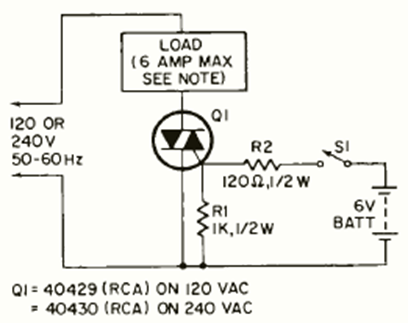

This circuit was found in the June 1970 Radio Electronics magazine. The power to the load is triac dependent and the triggering is low current.
