Parallel to Serial Interface (CB24900E)

Details
Written by: Newton C. Braga

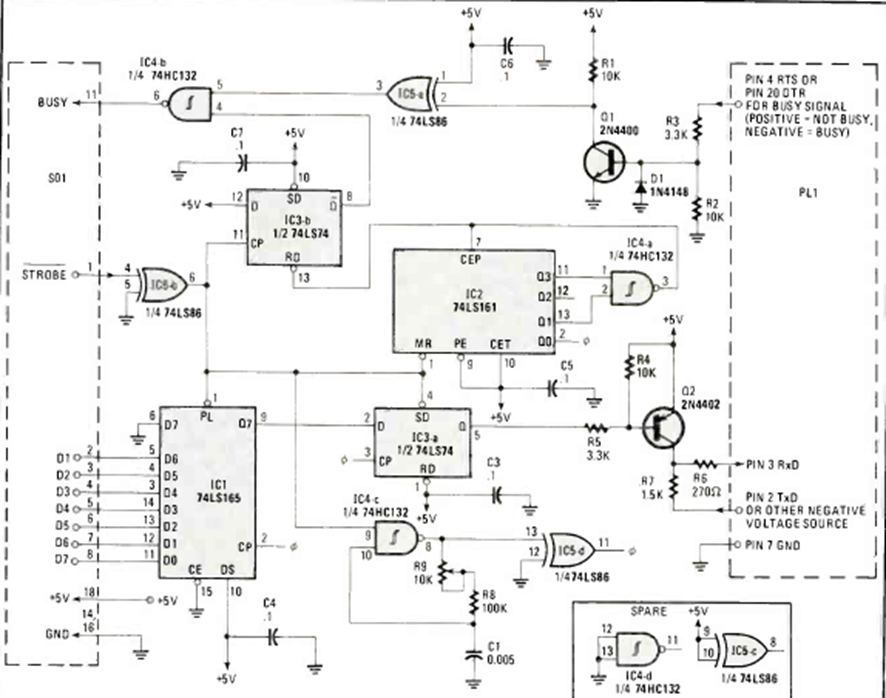

This circuit was found in the May 1985 issue of Radio Electronics magazine. It applies to computers of the time with Centronics output. However, it is worth analyzing its operation for possible restorations or adaptations.




| Clique na imagem para ampliar |
