Infrared Vision (CB24310E)

Details
Written by: Newton C. Braga

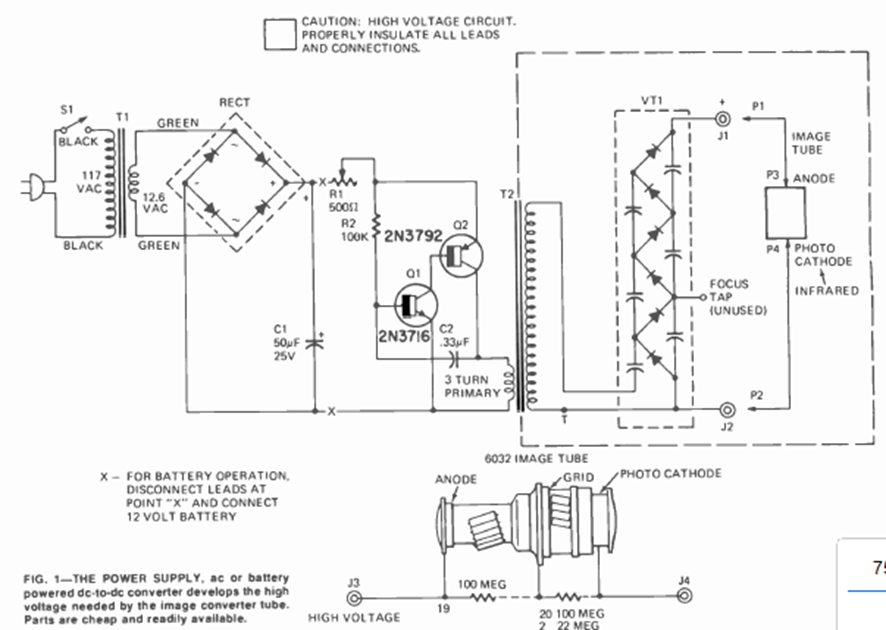

This circuit is from a Radio Electronics magazine from August 1974. It used one of the first photomultiplier tubes that was to be powered by high voltage. The power came from the mains.
