Ultra simple power supply (CB24886E)

Details
Written by: Newton C. Braga

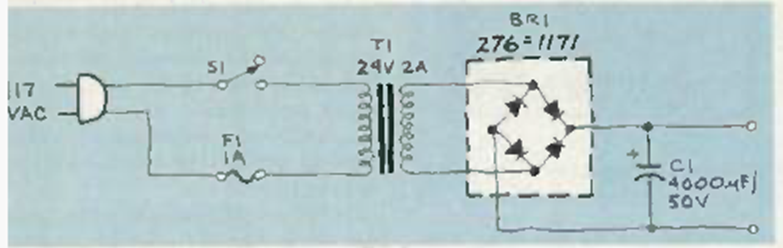

This circuit is one of many similar ones that can be found on this site. This version is from Radio Electronics from January 1984. The diodes are according to the current of the transformer used.
