Adder and Subtractor (CB24623E)

Details
Written by: Newton C. Braga

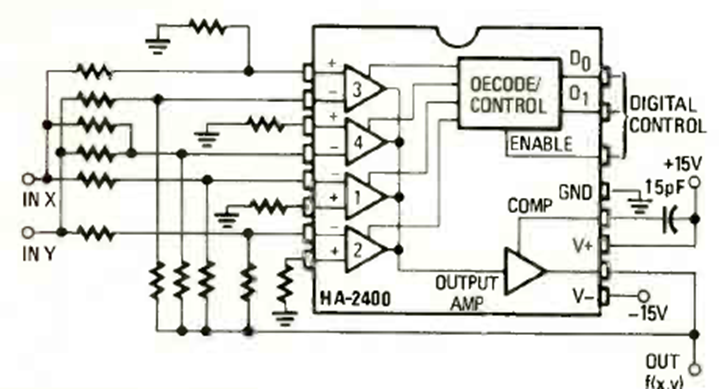

We found this circuit in the March 1980 Radio Electronics magazine. The circuit used is the HA2400 released at the time. The power supply must be symmetrical.
