Light-Sensitive Tone Generator (CB24115E)

Details
Written by: Newton C. Braga

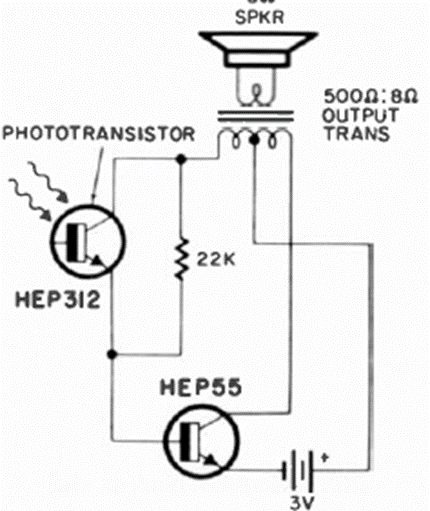

The sensor for this circuit is a phototransistor. We found it in the April 1971 issue of Radio Electronics magazine. A 1 to 22 nF capacitor can be added in parallel with the resistor to change the tone.
