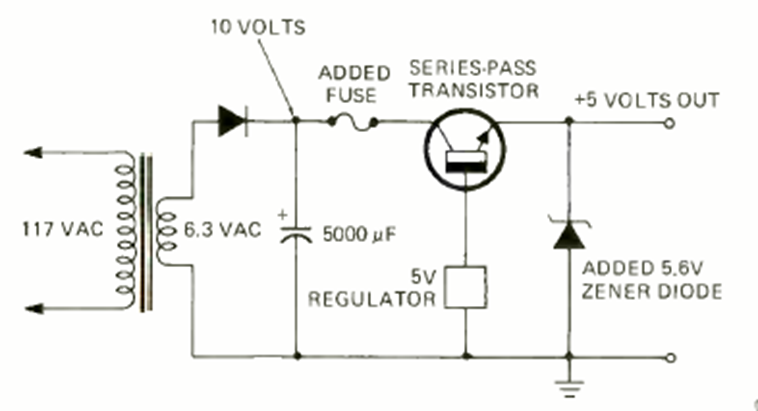

This circuit is designed to force a current greater than that of the fuse onto the transistor in case of problems, burning it for protection. We found it in a Radio Electronics magazine from October 1972.
| Clique na imagem para ampliar |
Power supply protection (CB24214E)
- Details
- Written by: Newton C. Braga
