555 with duty cycle (CB24905E)

Details
Written by: Newton C. Braga

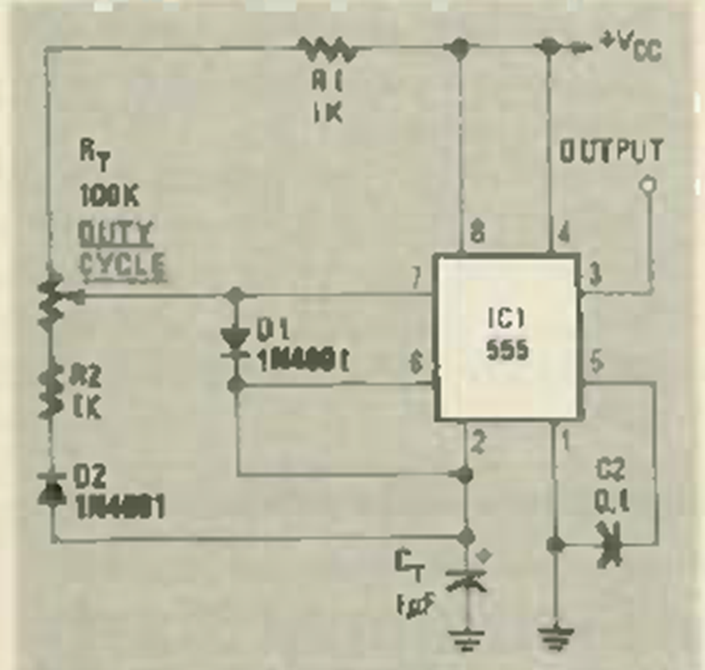

This circuit allows you to vary the duty cycle without changing the frequency. An interesting application for PWM controls. The circuit is from a Radio Electronics magazine from July 1985.
