Video Modulator (CB24517E)

Details: Written by: Newton C. Braga

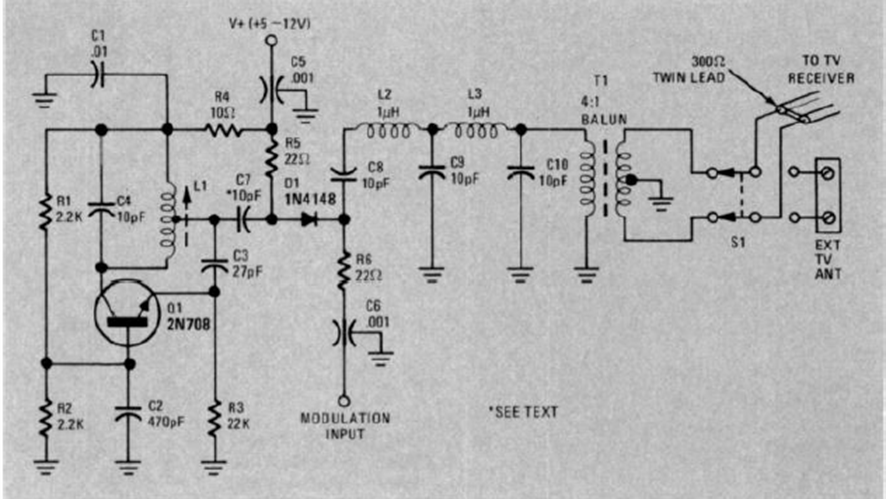

We found this circuit for video games in a Radio Electronics magazine from August 1977. The transistor can be any common RF type that reaches the desired signal frequency.

| Clique na imagem para ampliar |
