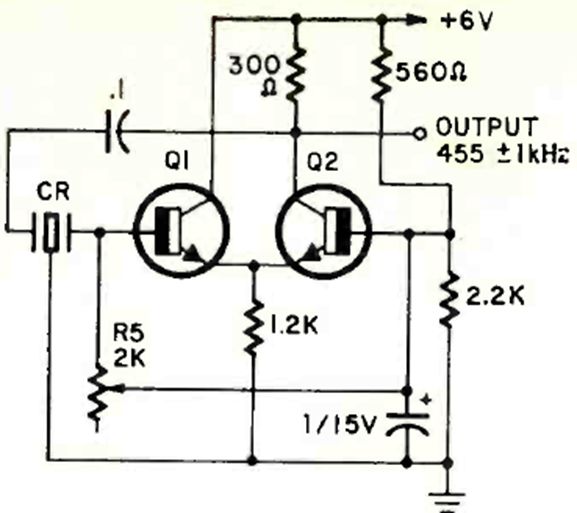

This oscillator using a 455 kHz ceramic filter was found in the May 1970 issue of Radio Electronics magazine. The circuit uses general-purpose transistors of the time and is accurate to 1 kHz.
Ceramic Filter Oscillator (CB24033E)
- Details
- Written by: Newton C. Braga
