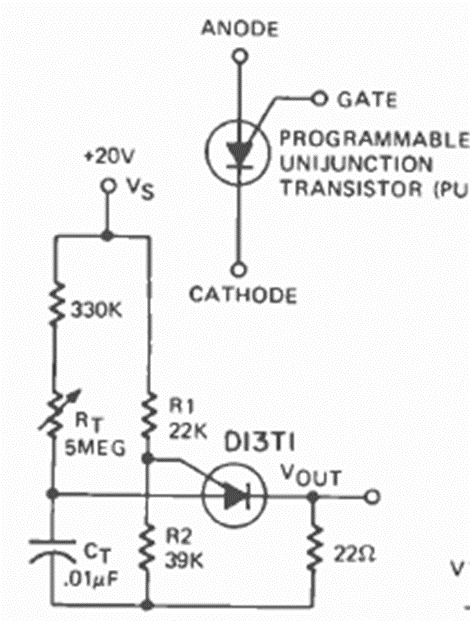

In the figure we have a simple pulse generator using a unijunction programmable transistor. The circuit is from a Radio Electronics from March 1973.
PUT Pulse generator for SCR triggering (CB24250E)
- Details
- Written by: Newton C. Braga
In the figure we have a simple pulse generator using a unijunction programmable transistor. The circuit is from a Radio Electronics from March 1973.
