Firing the 555 (CB24850E)
- Details
- Written by: Newton C. Braga

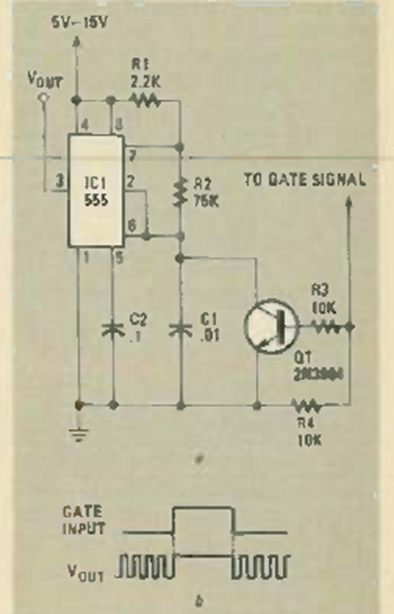

In the figure we have a different way of triggering a 555 oscillator. The circuit is from Radio Electronics from September 1984. The transistor is general-purpose.
