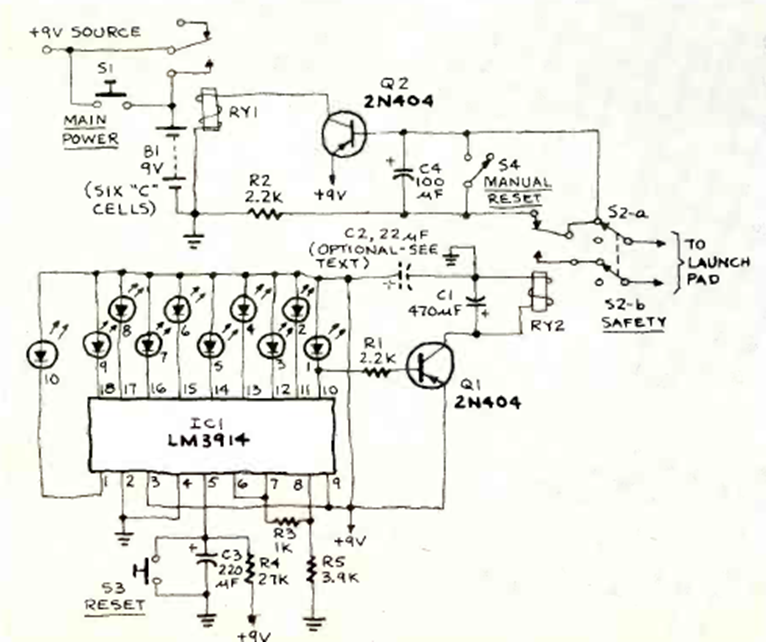

Found in the August 1982 issue of Radio Electronics magazine, this circuit lights LEDs in sequence simulating a countdown and, when signaled, activates a relay connected to the rocket's ignition system. The circuit can operate with other voltages depending on the relay.
| Clique na imagem para ampliar |
