Power Switch (CB24697E)

Details
Written by: Newton C. Braga

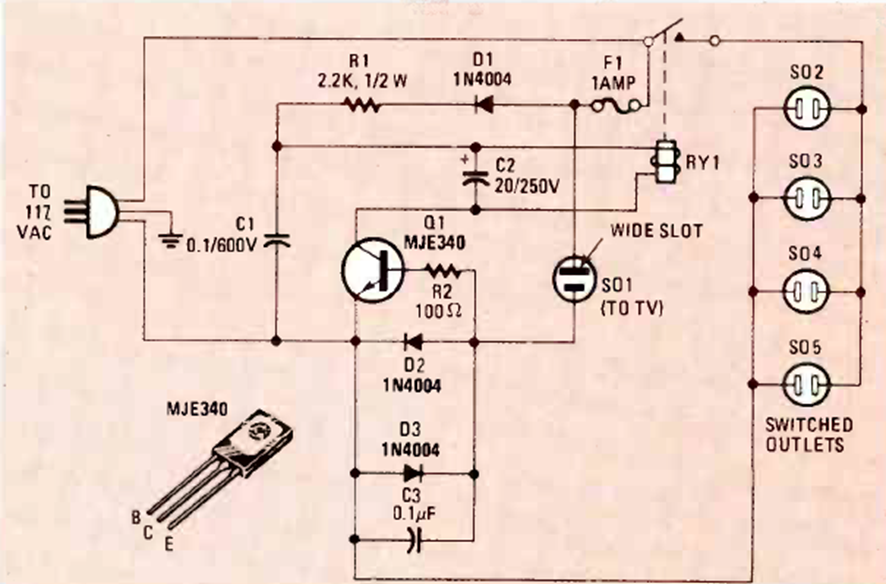

This automatic switch for multiple loads was shown in the May 1983 issue of Radio Electronics magazine. The circuit is designed to switch multiple electronic devices at the same time.




| Clique na imagem para ampliar |
