Window Comparator I (CB24973E)

Details
Written by: Newton C. Braga

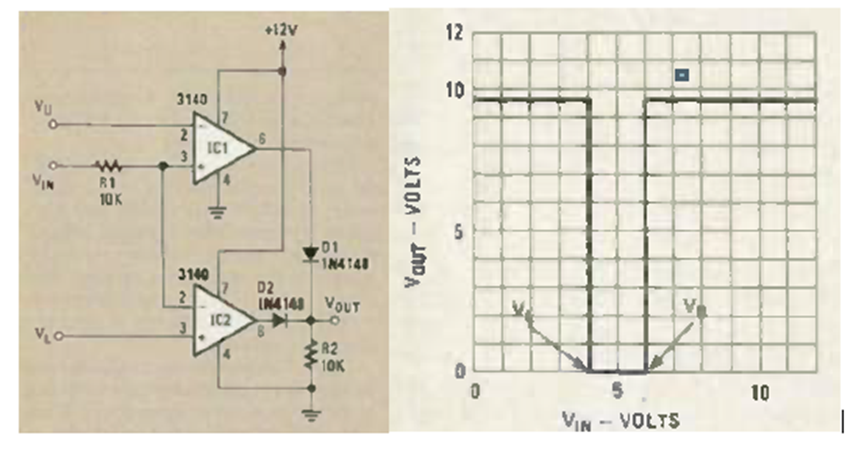

Using the CA3140 in the figure we have a comparator that goes low in the window voltage space. The circuit was found in June 1986 Radio Electronics magazine.
