High current power supply (CB24428E)

Details
Written by: Newton C. Braga

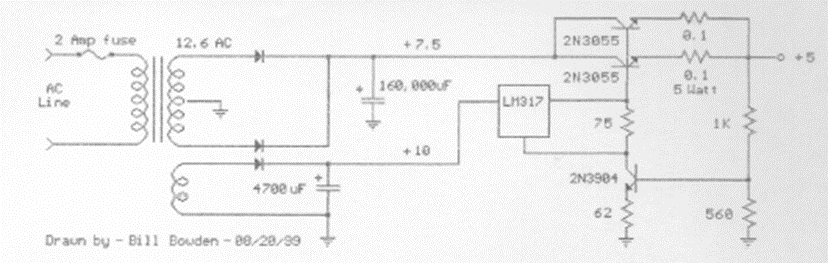

This power supply was found in documentation from the 90s. Two power transistors are used to increase the current capacity. They must be equipped with a heat sink.
