Electronic Thermometer 741 (CB24713E)

Details
Written by: Newton C. Braga

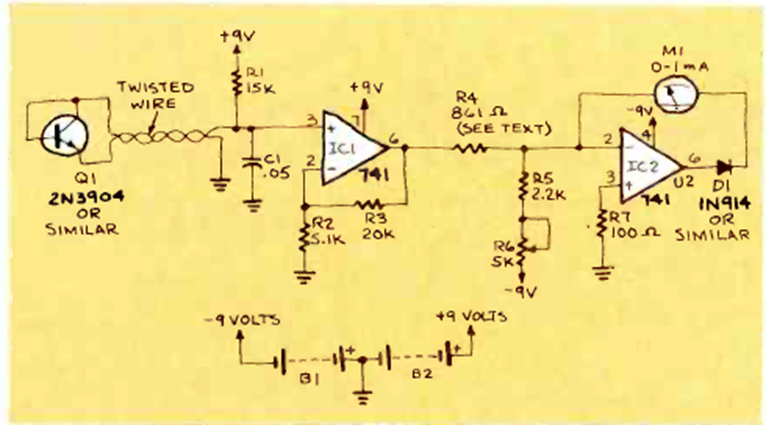

This dual-operator thermometer circuit was found in the September 1982 issue of Radio Electronics magazine. The sensor consists of a general-purpose transistor.




| Clique na imagem para ampliar |
