High Voltage Generator (CB24989E)

Details
Written by: Newton C. Braga

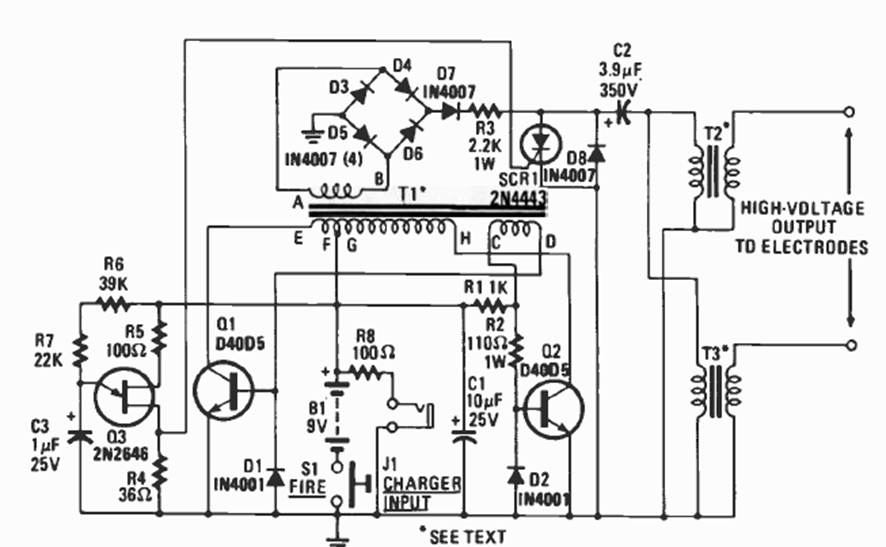

Published in the August 1986 issue of Radio Electronics magazine, this circuit acts as a weapon, capable of delivering strong shocks to anyone who touches it. The circuit operates at 10 kHz.
