Power supply for the Ion generator (CB26211E)

Details
Written by: Newton C. Braga

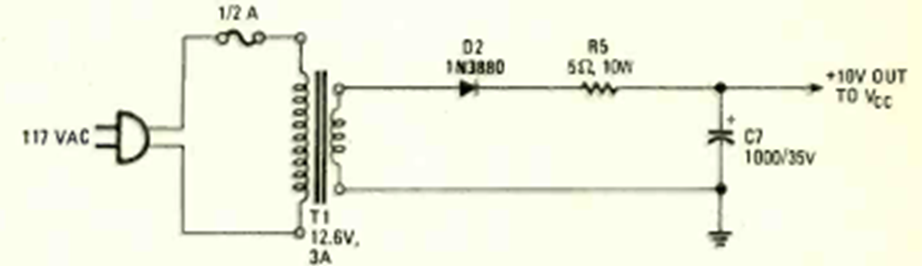

This power supply for the ion generator in the previous circuit does not need to be regulated, providing a good current. The circuit was found in the same magazine and requires a transformer with at least 3A.




| Clique na imagem para ampliar |
