Fluorescent Inverter (CB25996E)

Details
Written by: Newton C. Braga

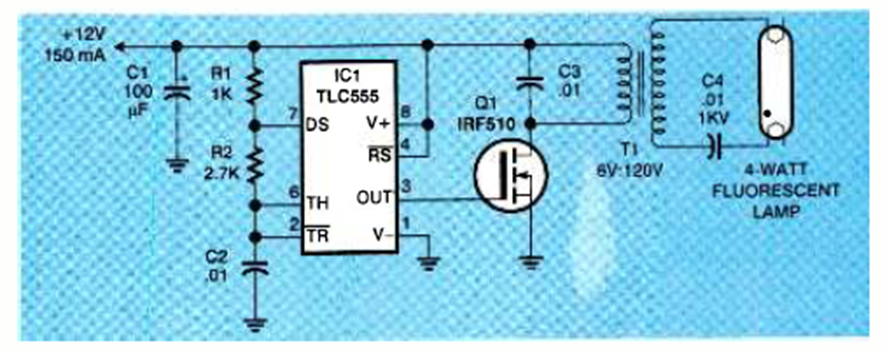

This inverter circuit for small 4 W fluorescent lamps was found in the December 1996 issue of Electronics Now magazine. The 110 x 6 V transformer is with 50 or 100 mA.






| Clique na imagem para ampliar |
